QDLF轻型立式多级离心泵- 所属类型：
不锈钢泵
- 型 号：QDLF8-200
- 尺 寸：
- 功 率：7.5KW
- 转 速：2900转/分
- 流 量：8立方/小时
- 扬 程：185M
- 叶轮直径：
- 介质温度：60-120度
- 效 率：咨询电话：18566100048
|

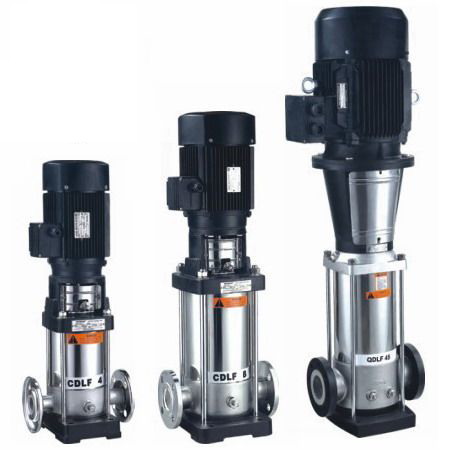

CDLF/QDLF立式不锈钢多级离心泵
CDLF多级离心泵，QDLF不锈钢多级离心泵，CDLF立式多级离心泵，QDLF多级离心泵，CDLF多级离心泵价格
一、产品概述：
CDLF型立式多级不锈钢冲多级离心泵（以下简称离心泵）是吸取了国内外先进技术而设计制造的非自吸立式多级离心泵，采用标准立式电机和快装式机械密封，更换非常方便。
多级离心泵的过流部分均采用不锈钢（304\316）材料制成，可适用于轻度腐蚀性介质。多级离心泵可替代国外CR、CRN等同类产品。产品投放市场后，以其高效节能、质量可靠、使用范围广等特点，深受广大用户的喜爱。
二、产品特征：
1、采用优良的水力模型和先进的制造工艺，大大提高泵的性能及使用寿命。
2、由于轴封采用材料为硬质合金及氟橡胶的机械密封，可提高泵运行的可靠性及输送介质的温度。
3、多级离心泵的过流部分采用不锈钢板冲压焊接而成，使得泵可适用于轻度腐蚀性介质。
4、整体结构紧凑、体积小、重量轻、噪声低、节能效果显著，检修方便。
5、泵的进水口与出水口位于泵座同一水平线上，可直接用于管路当中。
6、采用标准电机，用户可方便地根据需要配备电机。
7、可根据用户需要配备智能保护器，对泵干转、缺相、过载等进行有效保护。
三、产品用途：
供水：水厂过滤与输送、水厂分区送水、主管增压、高层建筑增压。
工业增压：流程水系统、清洗系统、高压冲洗系统、消防系统。
工业液体输送：冷却和空调系统、锅炉给水和冷凝系统、机床配套、酸性和碱性介质输送。
水处理：超滤系统、反渗透系统、蒸馏系统、分离器和游泳池的水处理系统。
灌溉：农田灌溉、喷灌、滴灌。
四、输送介质：
1、稀薄、清洁、不含固体颗粒或纤维的非易燃易爆介质。
2、诸如矿泉水、软化水、纯水、清油和其他轻化工介质。
3、多级离心泵主要材料为不锈钢，可应用于抽送轻度腐蚀性介质。
五、技术参数：
流量：4.2-504m3/h；
扬程：24-240m；
功率：1.5-450kw；
转速：1480r/min；
口径：φ40-φ250；
温度范围：0-+90℃；
工作压力：≤2.4Mpa。
六、CDLF型立式多级不锈钢冲压离心泵型号意义：
CDL F 4 — 120
| | | |
| | | |______ 级数×10
| | |
| | |__________ 额定流量m3/h
| |
| |_____________ 流过部件为不锈钢（304或316）
|
|_________________ 轻型不锈钢立式多级离心泵
七、QDLF型立式多级不锈钢冲压离心泵型号参数：
|
型号
|
扬程
|
流量
|
电机功率
|
转速
|
|
（m）
|
（m3/h）
|
（KW）
|
（r/min）
|
|
CDLF1-20
|
11.5
|
1
|
0.37
|
2900
|
|
CDLF1-30
|
17
|
1
|
0.37
|
2900
|
|
CDLF1-40
|
22.5
|
1
|
0.37
|
2900
|
|
CDLF1-50
|
28
|
1
|
0.37
|
2900
|
|
CDLF1-60
|
33.5
|
1
|
0.37
|
2900
|
|
CDLF1-70
|
39
|
1
|
0.37
|
2900
|
|
CDLF1-80
|
45
|
1
|
0.55
|
2900
|
|
CDLF1-90
|
51
|
1
|
0.55
|
2900
|
|
CDLF1-100
|
57
|
1
|
0.55
|
2900
|
|
CDLF1-170
|
95
|
1
|
1.1
|
2900
|
|
CDLF1-190
|
106
|
1
|
1.1
|
2900
|
|
CDLF1-210
|
117
|
1
|
1.1
|
2900
|
|
CDLF1-230
|
128
|
1
|
1.1
|
2900
|
|
CDLF1-250
|
139
|
1
|
1.5
|
2900
|
|
CDLF1-270
|
150
|
1
|
1.5
|
2900
|
|
CDLF1-300
|
166
|
1
|
1.5
|
2900
|
|
CDLF1-330
|
183
|
1
|
2.2
|
2900
|
|
CDLF1-360
|
200
|
1
|
2.2
|
2900
|
|
CDLF2-20
|
15
|
2
|
0.37
|
2900
|
|
CDLF2-30
|
22
|
2
|
0.37
|
2900
|
|
CDLF2-40
|
30
|
2
|
0.55
|
2900
|
|
CDLF2-50
|
37
|
2
|
0.55
|
2900
|
|
CDLF2-60
|
45
|
2
|
0.75
|
2900
|
|
CDLF2-70
|
52
|
2
|
0.75
|
2900
|
|
CDLF2-90
|
67
|
2
|
1.1
|
2900
|
|
CDLF2-110
|
82
|
2
|
1.1
|
2900
|
|
CDLF2-130
|
98
|
2
|
1.5
|
2900
|
|
CDLF2-150
|
112
|
2
|
1.5
|
2900
|
|
CDLF2-180
|
136
|
2
|
2.2
|
2900
|
|
CDLF2-220
|
165
|
2
|
2.2
|
2900
|
|
CDLF2-260
|
198
|
2
|
3.0
|
2900
|
|
CDLF3-20
|
9
|
3
|
0.37
|
2900
|
|
CDLF3-30
|
14
|
3
|
0.37
|
2900
|
|
CDLF3-40
|
19
|
3
|
0.37
|
2900
|
|
CDLF3-50
|
23
|
3
|
0.37
|
2900
|
|
CDLF3-60
|
28
|
3
|
0.55
|
2900
|
|
CDLF3-70
|
32
|
3
|
0.55
|
2900
|
|
CDLF3-80
|
37
|
3
|
0.75
|
2900
|
|
CDLF3-90
|
42
|
3
|
0.75
|
2900
|
|
CDLF3-100
|
47
|
3
|
0.75
|
2900
|
|
CDLF3-110
|
51
|
3
|
1.1
|
2900
|
|
CDLF3-120
|
55
|
3
|
1.1
|
2900
|
|
CDLF3-130
|
60
|
3
|
1.1
|
2900
|
|
CDLF3-150
|
69
|
3
|
1.1
|
2900
|
|
CDLF3-170
|
79
|
3
|
1.5
|
2900
|
|
CDLF3-190
|
88
|
3
|
1.5
|
2900
|
|
CDLF3-210
|
98
|
3
|
2.2
|
2900
|
|
CDLF3-230
|
107
|
3
|
2.2
|
2900
|
|
CDLF3-250
|
116
|
3
|
2.2
|
2900
|
|
CDLF3-270
|
124
|
3
|
2.2
|
2900
|
|
CDLF3-290
|
133
|
3
|
2.2
|
2900
|
|
CDLF3-310
|
142
|
3
|
3
|
2900
|
|
CDLF3-330
|
151
|
3
|
3
|
2900
|
|
CDLF3-360
|
168
|
3
|
3
|
2900
|
|
CDLF4-20
|
15
|
4
|
0.37
|
2900
|
|
CDLF4-30
|
24
|
4
|
0.55
|
2900
|
|
CDLF4-40
|
32
|
4
|
0.75
|
2900
|
|
CDLF4-50
|
40
|
4
|
1.1
|
2900
|
|
CDLF4-60
|
48
|
4
|
1.1
|
2900
|
|
CDLF4-70
|
56
|
4
|
1.5
|
2900
|
|
CDLF4-80
|
64
|
4
|
1.5
|
2900
|
|
CDLF4-100
|
81
|
4
|
2.2
|
2900
|
|
CDLF4-120
|
95
|
4
|
2.2
|
2900
|
|
CDLF4-140
|
112
|
4
|
3
|
2900
|
|
CDLF4-160
|
129
|
4
|
3
|
2900
|
|
CDLF4-190
|
153
|
4
|
4
|
2900
|
|
CDLF4-220
|
178
|
4
|
4
|
2900
|
|
CDLF8-2/10
|
9
|
8
|
0.75
|
2900
|
|
CDLF8-20
|
18
|
8
|
0.75
|
2900
|
|
CDLF8-30
|
27
|
8
|
1.1
|
2900
|
|
CDLF8-40
|
36
|
8
|
1.5
|
2900
|
|
CDLF8-50
|
45
|
8
|
2.2
|
2900
|
|
CDLF8-60
|
54
|
8
|
2.2
|
2900
|
|
CDLF8-80
|
73
|
8
|
3.0
|
2900
|
|
CDLF8-100
|
92
|
8
|
4.0
|
2900
|
|
CDLF8-120
|
111
|
8
|
4.0
|
2900
|
|
CDFL8-140
|
130
|
8
|
5.5
|
2900
|
|
CDLF8-160
|
148
|
8
|
5.5
|
2900
|
|
CDLF8-180
|
167
|
8
|
7.5
|
2900
|
|
CDLF8-200
|
186
|
8
|
7.5
|
2900
|
|
CDLF12-20
|
20
|
12
|
1.5
|
2900
|
|
CDLF12-30
|
30
|
12
|
2.2
|
2900
|
|
CDLF12-40
|
40
|
12
|
3
|
2900
|
|
CDLF12-50
|
50
|
12
|
3
|
2900
|
|
CDLF12-60
|
60
|
12
|
4
|
2900
|
|
CDLF12-70
|
70
|
12
|
5.5
|
2900
|
|
CDLF12-80
|
80
|
12
|
5.5
|
2900
|
|
CDLF12-90
|
91
|
12
|
5.5
|
2900
|
|
CDLF12-100
|
101
|
12
|
7.5
|
2900
|
|
CDLF12-120
|
121
|
12
|
7.5
|
2900
|
|
CDLF12-140
|
141
|
12
|
11
|
2900
|
|
CDLF12-160
|
162
|
12
|
11
|
2900
|
|
CDLF12-180
|
183
|
12
|
11
|
2900
|
|
CDLF16-20
|
22
|
16
|
2.2
|
2900
|
|
CDLF16-30
|
34
|
16
|
3.0
|
2900
|
|
CDLF16-40
|
46
|
16
|
4.0
|
2900
|
|
CDLF16-50
|
58
|
16
|
5.5
|
2900
|
|
CDLF16-60
|
70
|
16
|
5.5
|
2900
|
|
CDLF16-70
|
82
|
16
|
7.5
|
2900
|
|
CDLF16-80
|
94
|
16
|
7.5
|
2900
|
|
CDLF16-100
|
118
|
16
|
11
|
2900
|
|
CDLF16-120
|
141
|
16
|
11
|
2900
|
|
CDLF16-140
|
166
|
16
|
15
|
2900
|
|
CDLF16-160
|
189
|
16
|
15
|
2900
|
|
CDLF20-10
|
10
|
20
|
1.1
|
2900
|
|
CDLF20-20
|
23
|
20
|
2.2
|
2900
|
|
CDLF20-30
|
35
|
20
|
4.0
|
2900
|
|
CDLF20-40
|
47
|
20
|
5.5
|
2900
|
|
CDLF20-50
|
58
|
20
|
5.5
|
2900
|
|
CDLF20-60
|
70
|
20
|
7.5
|
2900
|
|
CDLF20-70
|
82
|
20
|
7.5
|
2900
|
|
CDLF20-80
|
94
|
20
|
11
|
2900
|
|
CDLF20-100
|
118
|
20
|
11
|
2900
|
|
CDLF20-120
|
142
|
20
|
15
|
2900
|
|
CDLF20-140
|
166
|
20
|
15
|
2900
|
|
CDLF20-170
|
202
|
20
|
18.5
|
2900
|
|
CDLF32-10-1
|
9
|
32
|
1.5
|
2900
|
|
CDLF32-10
|
13
|
32
|
2.2
|
2900
|
|
CDLF32-20-2
|
20
|
32
|
3.0
|
2900
|
|
CDLF32-20
|
27
|
32
|
4.0
|
2900
|
|
CDLF32-30-2
|
33
|
32
|
5.5
|
2900
|
|
CDLF32-30
|
40
|
32
|
5.5
|
2900
|
|
CDLF32-40-2
|
46
|
32
|
7.5
|
2900
|
|
CDLF32-40
|
53
|
32
|
7.5
|
2900
|
|
CDLF32-50-2
|
60
|
32
|
11
|
2900
|
|
CDLF32-50
|
67
|
32
|
11
|
2900
|
|
CDLF32-60-2
|
74
|
32
|
11
|
2900
|
|
CDLF32-60
|
81
|
32
|
11
|
2900
|
|
CDLF32-70-2
|
88
|
32
|
15
|
2900
|
|
CDLF32-70
|
95
|
32
|
15
|
2900
|
|
CDLF32-80-2
|
102
|
32
|
15
|
2900
|
|
CDLF32-80
|
109
|
32
|
15
|
2900
|
|
CDLF32-90-2
|
117
|
32
|
18.5
|
2900
|
|
CDLF32-90
|
124
|
32
|
18.5
|
2900
|
|
CDLF32-100-2
|
131
|
32
|
18.5
|
2900
|
|
CDLF32-100
|
138
|
32
|
18.5
|
2900
|
|
CDLF32-110-2
|
146
|
32
|
22
|
2900
|
|
CDLF32-110
|
153
|
32
|
22
|
2900
|
|
CDLF32-120-2
|
160
|
32
|
22
|
2900
|
|
CDLF32-120
|
167
|
32
|
22
|
2900
|
|
CDLF32-130-2
|
174
|
32
|
30
|
2900
|
|
CDLF32-130
|
181
|
32
|
30
|
2900
|
|
CDLF32-140-2
|
189
|
32
|
30
|
2900
|
|
CDLF32-140
|
196
|
32
|
30
|
2900
|
|
CDLF42-10-1
|
16
|
42
|
3.0
|
2900
|
|
CDLF42-10
|
20
|
42
|
4.0
|
2900
|
|
CDLF42-20-2
|
32
|
42
|
5.5
|
2900
|
|
CDLF42-20
|
41
|
42
|
7.5
|
2900
|
|
CDLF42-30-2
|
52
|
42
|
11
|
2900
|
|
CDLF42-30
|
61
|
42
|
11
|
2900
|
|
CDLF42-40-2
|
73
|
42
|
15
|
2900
|
|
CDLF42-40
|
81
|
42
|
15
|
2900
|
|
CDLF42-50-2
|
93
|
42
|
18.5
|
2900
|
|
CDLF42-50
|
101
|
42
|
18.5
|
2900
|
|
CDLF42-60-2
|
113
|
42
|
22
|
2900
|
|
CDLF42-60
|
122
|
42
|
22
|
2900
|
|
CDLF42-70-2
|
134
|
42
|
30
|
2900
|
|
CDLF42-70
|
142
|
42
|
30
|
2900
|
|
CDLF42-80-2
|
154
|
42
|
30
|
2900
|
|
CDLF42-80
|
162
|
42
|
30
|
2900
|
|
CDLF42-90-2
|
174
|
42
|
30
|
2900
|
|
CDLF42-90
|
183
|
42
|
37
|
2900
|
|
CDLF42-100-2
|
194
|
42
|
37
|
2900
|
|
CDLF42-100
|
203
|
42
|
37
|
2900
|
|
CDLF42-110-2
|
217
|
42
|
45
|
2900
|
|
CDLF42-110
|
225
|
42
|
45
|
2900
|
|
CDLF42-120-2
|
238
|
42
|
45
|
2900
|
|
CDLF42-120
|
247
|
42
|
45
|
2900
|
|
CDLF42-130-2
|
259
|
42
|
45
|
2900
|
|
CDLF65-10-1
|
13
|
65
|
4.0
|
2900
|
|
CDLF65-10
|
20
|
65
|
5.5
|
2900
|
|
CDLF65-20-2
|
26
|
65
|
7.5
|
2900
|
|
CDLF65-20-1
|
33
|
65
|
11
|
2900
|
|
CDLF65-20
|
40
|
65
|
11
|
2900
|
|
CDLF65-30-2
|
46
|
65
|
15
|
2900
|
|
CDLF65-30-1
|
53
|
65
|
15
|
2900
|
|
CDLF65-30
|
60
|
65
|
18.5
|
2900
|
|
CDLF65-40-2
|
66
|
65
|
18.5
|
2900
|
|
CDLF65-40-1
|
73
|
65
|
22
|
2900
|
|
CDLF65-40
|
80
|
65
|
22
|
2900
|
|
CDLF65-50-2
|
88
|
65
|
30
|
2900
|
|
CDLF65-50-1
|
95
|
65
|
30
|
2900
|
|
CDLF65-50
|
102
|
65
|
30
|
2900
|
|
CDLF65-60-2
|
110
|
65
|
30
|
2900
|
|
CDLF65-60-1
|
117
|
65
|
37
|
2900
|
|
CDL65-60
|
124
|
65
|
37
|
2900
|
|
CDLF65-70-2
|
132
|
65
|
37
|
2900
|
|
CDLF65-70-1
|
139
|
65
|
37
|
2900
|
|
CDLF65-70
|
146
|
65
|
45
|
2900
|
|
CDLF65-80-2
|
154
|
65
|
45
|
2900
|
|
CDLF65-80-1
|
161
|
65
|
45
|
2900
|
|
CDLF85-10-1
|
14
|
85
|
5.5
|
2900
|
|
CDLF85-10
|
20
|
85
|
7.5
|
2900
|
|
CDLF85-20-2
|
30
|
85
|
11
|
2900
|
|
CDLF85-20
|
41
|
85
|
15
|
2900
|
|
CDLF85-30-2
|
52
|
85
|
18.5
|
2900
|
|
CDLF85-30
|
64
|
85
|
22
|
2900
|
|
CDLF85-40-2
|
75
|
85
|
30
|
2900
|
|
CDLF85-40
|
86
|
85
|
30
|
2900
|
|
CDLF85-50-2
|
98
|
85
|
37
|
2900
|
|
CDLF85-50
|
110
|
85
|
37
|
2900
|
|
CDLF85-60-2
|
122
|
85
|
45
|
2900
|
|
CDLF85-60
|
134
|
85
|
45
|
2900
|
|
CDLF120-10
|
18.5
|
120
|
11
|
2950
|
|
CDLF120-20-1
|
34.5
|
120
|
18.5
|
2950
|
|
CDLF120-20
|
40
|
120
|
22
|
2950
|
|
CDLF120-30
|
61
|
120
|
30
|
2950
|
|
CDLF120-40-1
|
76
|
120
|
37
|
2950
|
|
CDLF120-50-1
|
97
|
120
|
45
|
2950
|
|
CDLF120-60-1
|
118
|
120
|
55
|
2950
|
|
CDLF120-70
|
145
|
120
|
75
|
2950
|
|
CDLF150-10-1
|
12.5
|
150
|
11
|
2950
|
|
CDLF150-10
|
18.5
|
150
|
15
|
2950
|
|
CDLF150-20-1
|
35
|
150
|
22
|
2950
|
|
CDLF150-30-2
|
49
|
150
|
30
|
2950
|
|
CDLF150-30
|
63
|
150
|
37
|
2950
|
|
CDLF150-40-1
|
77
|
150
|
45
|
2950
|
|
CDLF150-50-2
|
92
|
150
|
55
|
2950
|
|
CDLF150-60
|
130
|
150
|
75
|
2950
|
|
|
