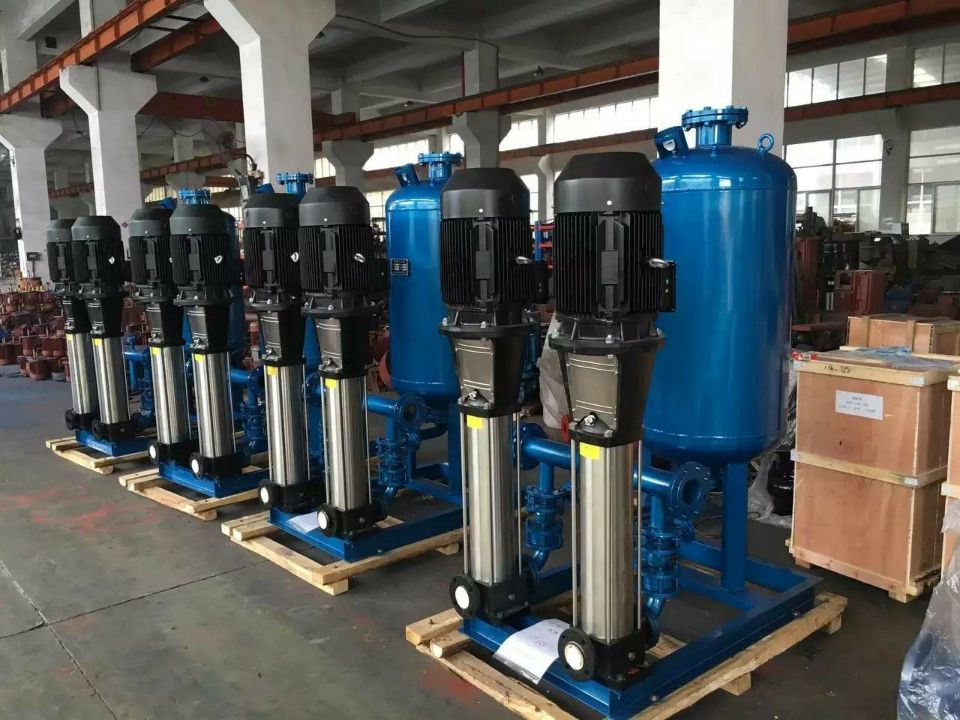

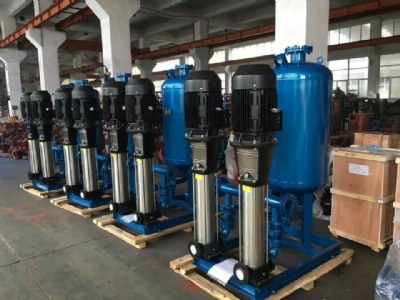

一、变频泵-增压变频水泵泵组简介:
本装备可视系统压力变化,由压力感应器,依感知信号与设定压力值比较计算,输出信号给专用变频器。变频器再根据传感器的信号变化,而改变频率(0-50Hz),马达泵浦随频率之变化而改变马达转速以达恒压功能。
二、变频泵-增压变频水泵泵组优点
1、采用微处理器智能控制;
2、美国产电源管理芯片,品质保证;
3、远距离操作控制水泵的运转与停机功能;
4、避免人与水泵的接触(或近距离的接触)安全。
三、变频泵-增压变频水泵泵组功能:
1、压力调整 直接在传感器上操作。
2、缺水失压保护功能:缺水故障,本控制器会强制马达停止运转。
3、保护功能:过电压、过电流、过负载限制、过热、低
电压、高电压、接地保护、异常接点输入。
四、立式变频泵(恒压泵)应用范围:
1、一般家庭、小高层、高级别墅、宾馆等需要恒压供水或其它需要加压不要水塔、水池的场所。
2、不能二次污染水质的场所。
3、住宅小区房屋顶部二次加压和其他水压不够、不稳需要加压的场所。
4、冷水用(使用温度:最高75ºC),热水用(使用温度:最高120 ºC)
五、立式变频泵(恒压泵)性能参数表:
序号
|
型 号
|
功率
(kw)
|
流量
(m3/h)
|
1.2
|
1.6
|
2
|
2.4
|
2.8
|
3.2
|
3.5
|
口径
(mm)
|
1
|
JHL2-15
|
0.37
|
扬程
H
(m)
|
17
|
16
|
15
|
13
|
12
|
10
|
8
|
25x25
|
2
|
JHL2-22
|
0.37
|
26
|
24
|
22
|
20
|
18
|
15
|
12
|
3
|
JHL2-30
|
0.55
|
35
|
33
|
30
|
26
|
24
|
20
|
16
|
4
|
JHL2-37
|
0.55
|
43
|
40
|
37
|
33
|
30
|
24
|
20
|
5
|
JHL2-45
|
0.75
|
52
|
50
|
45
|
40
|
36
|
30
|
24
|
6
|
JHL2-52
|
0.75
|
61
|
57
|
52
|
47
|
41
|
35
|
28
|
7
|
JHL2-67
|
1.1
|
78
|
73
|
67
|
61
|
54
|
45
|
37
|
8
|
JHL2-82
|
1.1
|
95
|
89
|
82
|
73
|
64
|
54
|
44
|
9
|
JHL2-98
|
1.5
|
114
|
106
|
98
|
89
|
78
|
65
|
52
|
10
|
JHL2-112
|
1.5
|
130
|
123
|
112
|
100
|
90
|
73
|
60
|
11
|
JHL2-136
|
2.2
|
157
|
148
|
136
|
121
|
108
|
91
|
76
|
12
|
JHL2-165
|
2.2
|
192
|
180
|
165
|
148
|
130
|
110
|
90
|
13
|
JHL2-198
|
3
|
228
|
214
|
198
|
179
|
158
|
130
|
110
|
|
型 号
|
功率
(kw)
|
流量
(m3/h)
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
口径
(mm)
|
14
|
JHL4-15
|
0.37
|
扬程
H
(m)
|
18
|
17
|
15
|
13
|
10
|
8
|
6
|
32x32
|
15
|
JHL4-24
|
0.55
|
27
|
26
|
24
|
20
|
18
|
13
|
10
|
16
|
JHL4-32
|
0.75
|
36
|
34
|
32
|
27
|
24
|
19
|
13
|
17
|
JHL4-40
|
1.1
|
45
|
43
|
40
|
34
|
31
|
23
|
17
|
18
|
JHL4-48
|
1.1
|
54
|
52
|
48
|
41
|
37
|
28
|
20
|
19
|
JHL4-56
|
1.5
|
63
|
61
|
56
|
48
|
43
|
33
|
24
|
20
|
JHL4-64
|
1.5
|
72
|
70
|
64
|
55
|
50
|
38
|
27
|
21
|
JHL4-81
|
2.2
|
90
|
87
|
81
|
71
|
62
|
48
|
34
|
22
|
JHL4-95
|
2.2
|
108
|
104
|
95
|
85
|
75
|
58
|
41
|
23
|
JHL4-112
|
3
|
126
|
122
|
112
|
101
|
89
|
68
|
48
|
24
|
JHL4-129
|
3
|
144
|
140
|
129
|
115
|
101
|
78
|
55
|
25
|
JHL4-153
|
4
|
171
|
168
|
153
|
137
|
122
|
93
|
67
|
26
|
JHL4-178
|
4
|
200
|
192
|
178
|
160
|
138
|
108
|
79
|
|
型 号
|
功率
(kw)
|
流量
(m3/h)
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
口径
(mm)
|
27
|
JHL8-18
|
0.75
|
扬程
H
(m)
|
20
|
19
|
18
|
17
|
16
|
15
|
14
|
40x40
|
28
|
JHL8-27
|
1.1
|
30
|
29
|
27
|
26
|
24
|
23
|
20
|
29
|
JHL8-36
|
1.5
|
40
|
39
|
36
|
35
|
32
|
30
|
27
|
30
|
JHL8-45
|
2.2
|
50
|
48
|
45
|
44
|
41
|
37
|
34
|
31
|
JHL8-54
|
2.2
|
60
|
58
|
54
|
53
|
49
|
45
|
41
|
32
|
JHL8-73
|
3
|
80
|
78
|
73
|
70
|
65
|
60
|
54
|
33
|
JHL8-92
|
4
|
100
|
97
|
92
|
88
|
80
|
75
|
68
|
34
|
JHL8-111
|
4
|
120
|
116
|
111
|
105
|
97
|
90
|
81
|
35
|
JHL8-130
|
5.5
|
140
|
136
|
130
|
123
|
113
|
105
|
95
|
36
|
JHL8-148
|
5.5
|
160
|
155
|
148
|
140
|
130
|
120
|
108
|
37
|
JHL8-167
|
7.5
|
180
|
175
|
167
|
158
|
146
|
135
|
122
|
38
|
JHL8-186
|
7.5
|
200
|
194
|
186
|
175
|
162
|
150
|
135
|
|
型 号
|
功率
(kw)
|
流量
(m3/h)
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
口径
(mm)
|
39
|
JHL12-20
|
1.5
|
扬程
H
(m)
|
22.5
|
22
|
21
|
20
|
18.5
|
17
|
15.5
|
50x50
|
40
|
JHL12-30
|
2.2
|
34
|
33
|
31.5
|
30
|
28
|
26
|
23.5
|
41
|
JHL12-40
|
3
|
45
|
44
|
42
|
40
|
37
|
34
|
31
|
42
|
JHL12-50
|
3
|
56.5
|
55
|
52.5
|
50
|
46.5
|
43
|
39
|
43
|
JHL12-60
|
4
|
68
|
66
|
63
|
60
|
56
|
52
|
47
|
44
|
JHL12-70
|
5.5
|
79.5
|
77
|
73.5
|
70
|
65.5
|
61
|
55
|
45
|
JHL12-80
|
5.5
|
91
|
88
|
84
|
80
|
75
|
70
|
63
|
46
|
JHL12-91
|
5.5
|
103
|
100
|
95.5
|
91
|
85
|
79
|
71.5
|
47
|
JHL12-101
|
7.5
|
114.5
|
111
|
106
|
101
|
94.5
|
88
|
80
|
48
|
JHL12-121
|
7.5
|
137
|
133
|
127
|
121
|
113.5
|
106
|
96
|
49
|
JHL12-141
|
11
|
160
|
155
|
148
|
141
|
132.5
|
124
|
112
|
50
|
JHL12-162
|
11
|
183.5
|
178
|
170
|
162
|
152
|
142
|
128.5
|
51
|
JHL12-183
|
11
|
207.5
|
202
|
192.5
|
183
|
171.5
|
160
|
145
|
|
型 号
|
功率
(kw)
|
流量
(m3/h)
|
10
|
12
|
14
|
16
|
18
|
20
|
22
|
口径
(mm)
|
52
|
JHL16-22
|
2.2
|
扬程
H
(m)
|
27
|
26
|
25
|
22
|
21
|
19
|
17
|
50x50
|
53
|
JHL16-34
|
3
|
41
|
39
|
37
|
34
|
32
|
29
|
26
|
54
|
JHL16-46
|
4
|
54
|
52
|
50
|
46
|
44
|
38
|
34
|
55
|
JHL16-58
|
5.5
|
68
|
65
|
62
|
58
|
54
|
48
|
43
|
56
|
JHL16-70
|
5.5
|
81
|
78
|
75
|
70
|
64
|
58
|
52
|
57
|
JHL16-82
|
7.5
|
95
|
92
|
87
|
82
|
75
|
68
|
61
|
58
|
JHL16-94
|
7.5
|
108
|
105
|
100
|
94
|
86
|
77
|
70
|
59
|
JHL16-118
|
11
|
136
|
131
|
125
|
118
|
108
|
97
|
87
|
60
|
JHL16-141
|
11
|
163
|
157
|
150
|
141
|
129
|
116
|
105
|
61
|
JHL16-166
|
15
|
190
|
184
|
175
|
166
|
151
|
136
|
122
|
62
|
JHL16-189
|
15
|
217
|
210
|
200
|
189
|
173
|
155
|
140
|
|
型 号
|
功率
(kw)
|
流量
(m3/h)
|
16
|
18
|
20
|
22
|
24
|
26
|
28
|
口径
(mm)
|
63
|
JHL24-8
|
1.1
|
扬程
H
(m)
|
12
|
11
|
10
|
9
|
8
|
7
|
6
|
50x50
|
64
|
JHL24-20
|
2.2
|
25
|
24
|
23
|
22
|
20
|
18
|
15
|
65
|
JHL24-30
|
4.0
|
38
|
37
|
35
|
33
|
30
|
27
|
24
|
67
|
JHL24-40
|
5.5
|
51
|
49
|
47
|
44
|
40
|
37
|
33
|
68
|
JHL24-51
|
5.5
|
62
|
60
|
58
|
55
|
51
|
45
|
40
|
69
|
JHL24-61
|
7.5
|
75
|
73
|
70
|
66
|
61
|
55
|
49
|
70
|
JHL24-71
|
7.5
|
89
|
86
|
82
|
77
|
71
|
65
|
58
|
71
|
JHL24-82
|
11
|
102
|
99
|
94
|
89
|
82
|
75
|
67
|
72
|
JHL24-103
|
11
|
128
|
124
|
118
|
111
|
103
|
95
|
85
|
73
|
JHL24-124
|
15
|
154
|
149
|
142
|
133
|
124
|
114
|
102
|
74
|
JHL24-145
|
15
|
180
|
174
|
166
|
156
|
145
|
133
|
119
|
75
|
JHL24-177
|
18.8
|
219
|
212
|
202
|
190
|
177
|
162
|
145
|
|
型 号
|
功率
(kw)
|
流量
(m3/h)
|
16
|
20
|
24
|
28
|
32
|
36
|
40
|
口径
(mm)
|
76
|
JHL32-9
|
1.5
|
扬程
H
(m)
|
14
|
13
|
12
|
11
|
9
|
7
|
4
|
65x65
|
77
|
JHL32-13
|
2.2
|
18
|
17
|
15
|
14
|
13
|
11
|
8
|
78
|
JHL32-20
|
3
|
29
|
28
|
26
|
23
|
20
|
16
|
11
|
79
|
JHL32-27
|
4
|
36
|
34
|
32
|
29
|
27
|
23
|
18
|
80
|
JHL32-33
|
5.5
|
47
|
44
|
41
|
38
|
33
|
28
|
21
|
81
|
JHL32-40
|
5.5
|
54
|
51
|
48
|
44
|
40
|
35
|
27
|
82
|
JHL32-46
|
7.5
|
65
|
62
|
58
|
53
|
46
|
40
|
30
|
83
|
JHL32-53
|
7.5
|
72
|
69
|
65
|
59
|
53
|
47
|
37
|
84
|
JHL32-60
|
11
|
83
|
79
|
74
|
68
|
60
|
52
|
41
|
85
|
JHL32-67
|
11
|
90
|
86
|
81
|
74
|
67
|
59
|
47
|
86
|
JHL32-74
|
11
|
101
|
97
|
90
|
83
|
74
|
65
|
51
|
87
|
JHL32-81
|
11
|
108
|
104
|
97
|
90
|
81
|
72
|
57
|
88
|
JHL32-88
|
15
|
119
|
114
|
107
|
98
|
88
|
78
|
60
|
89
|
JHL32-95
|
15
|
126
|
121
|
113
|
105
|
95
|
85
|
67
|
90
|
JHL32-102
|
15
|
136
|
131
|
123
|
114
|
102
|
90
|
71
|
91
|
JHL32-109
|
15
|
144
|
138
|
130
|
120
|
109
|
97
|
77
|
92
|
JHL32-117
|
18.5
|
154
|
148
|
140
|
129
|
117
|
102
|
82
|
93
|
JHL32-124
|
18.5
|
162
|
156
|
147
|
136
|
124
|
109
|
88
|
94
|
JHL32-131
|
18.5
|
175
|
166
|
157
|
146
|
131
|
115
|
91
|
95
|
JHL32-138
|
18.5
|
182
|
173
|
164
|
152
|
138
|
122
|
97
|
96
|
JHL32-146
|
22
|
193
|
184
|
173
|
164
|
146
|
128
|
102
|
97
|
JHL32-153
|
22
|
200
|
191
|
180
|
168
|
153
|
135
|
109
|
98
|
JHL32-160
|
22
|
211
|
201
|
189
|
178
|
160
|
140
|
113
|
99
|
JHL32-167
|
22
|
218
|
208
|
196
|
184
|
167
|
147
|
120
|
100
|
JHL32-174
|
30
|
230
|
218
|
206
|
193
|
174
|
153
|
124
|
101
|
JHL32-181
|
30
|
237
|
225
|
213
|
200
|
181
|
160
|
131
|
102
|
JHL32-189
|
30
|
247
|
235
|
222
|
210
|
189
|
165
|
135
|
103
|
JHL32-196
|
30
|
255
|
242
|
229
|
216
|
196
|
172
|
142
|
|
型 号
|
功率
(kw)
|
流量
(m3/h)
|
30
|
35
|
40
|
42
|
45
|
50
|
55
|
口径
(mm)
|
104
|
JHL42-16
|
3
|
扬程
H
(m)
|
19
|
18
|
17
|
16
|
15
|
13
|
11
|
80x80
|
105
|
JHL42-20
|
4
|
23
|
22
|
21
|
20
|
19
|
18
|
16
|
106
|
JHL42-32
|
5.5
|
38
|
36
|
33
|
32
|
30
|
27
|
23
|
107
|
GTL42-41
|
7.5
|
46
|
44
|
42
|
41
|
39
|
35
|
31
|
108
|
JHL42-52
|
11
|
61
|
58
|
54
|
52
|
50
|
44
|
38
|
109
|
JHL42-61
|
11
|
69
|
66
|
63
|
61
|
58
|
53
|
47
|
110
|
JHL42-73
|
15
|
84
|
80
|
75
|
73
|
69
|
62
|
54
|
111
|
JHL42-81
|
15
|
92
|
88
|
84
|
81
|
78
|
71
|
62
|
112
|
JHL42-93
|
18.5
|
107
|
102
|
96
|
93
|
88
|
80
|
69
|
113
|
JHL42-101
|
18.5
|
115
|
110
|
105
|
101
|
97
|
88
|
78
|
114
|
JHL42-113
|
22
|
130
|
124
|
117
|
113
|
108
|
97
|
85
|
115
|
JHL42-122
|
22
|
138
|
132
|
125
|
122
|
116
|
106
|
93
|
116
|
JHL42-134
|
30
|
152
|
146
|
138
|
134
|
127
|
115
|
100
|
117
|
JHL42-142
|
30
|
161
|
154
|
146
|
142
|
135
|
124
|
109
|
118
|
JHL42-154
|
30
|
175
|
168
|
159
|
154
|
146
|
133
|
116
|
119
|
JHL42-162
|
30
|
184
|
176
|
167
|
162
|
154
|
141
|
124
|
120
|
JHL42-174
|
30
|
198
|
190
|
180
|
174
|
166
|
150
|
132
|
121
|
JHL42-183
|
37
|
207
|
198
|
188
|
183
|
174
|
159
|
140
|
122
|
JHL42-194
|
37
|
221
|
212
|
200
|
194
|
185
|
168
|
147
|
123
|
JHL42-203
|
37
|
230
|
220
|
209
|
203
|
193
|
177
|
155
|
124
|
JHL42-217
|
45
|
246
|
236
|
223
|
217
|
206
|
188
|
165
|
125
|
JHL42-225
|
45
|
255
|
244
|
232
|
225
|
214
|
196
|
173
|
126
|
JHL42-238
|
45
|
270
|
259
|
245
|
238
|
226
|
206
|
181
|
127
|
JHL42-247
|
45
|
280
|
268
|
255
|
247
|
236
|
216
|
190
|
128
|
JHL42-259
|
45
|
294
|
282
|
267
|
259
|
247
|
225
|
198
|
|
型 号
|
功率
(kw)
|
流量
(m3/h)
|
30
|
40
|
50
|
60
|
65
|
70
|
80
|
口径
(mm)
|
129
|
JHL65-13
|
4
|
扬程
H
(m)
|
19
|
18
|
16
|
14
|
13
|
11
|
8
|
100x100
|
130
|
JHL65-20
|
5.5
|
27
|
25
|
23
|
21
|
20
|
18
|
15
|
131
|
JHL65-26
|
7.5
|
39
|
36
|
33
|
29
|
26
|
23
|
17
|
132
|
JHL65-33
|
11
|
46
|
44
|
40
|
36
|
33
|
30
|
24
|
133
|
JHL65-40
|
11
|
53
|
51
|
47
|
43
|
40
|
37
|
30
|
134
|
JHL65-46
|
15
|
66
|
62
|
56
|
50
|
46
|
41
|
32
|
135
|
JHL65-53
|
15
|
73
|
69
|
63
|
57
|
53
|
48
|
39
|
136
|
JHL65-60
|
18.5
|
80
|
76
|
70
|
64
|
60
|
55
|
46
|
137
|
JHL65-66
|
18.5
|
92
|
87
|
80
|
71
|
66
|
60
|
47
|
138
|
JHL65-73
|
22
|
100
|
94
|
87
|
78
|
73
|
67
|
54
|
139
|
JHL65-80
|
22
|
107
|
101
|
94
|
85
|
80
|
74
|
61
|
140
|
JHL65-88
|
30
|
121
|
114
|
105
|
95
|
88
|
80
|
64
|
141
|
JHL65-95
|
30
|
128
|
121
|
112
|
102
|
95
|
87
|
71
|
142
|
JHL65-102
|
30
|
136
|
129
|
119
|
109
|
102
|
94
|
78
|
143
|
JHL65-110
|
30
|
150
|
142
|
131
|
118
|
110
|
101
|
81
|
144
|
JHL65-117
|
37
|
157
|
149
|
138
|
125
|
117
|
108
|
88
|
145
|
JHL65-124
|
37
|
164
|
156
|
145
|
132
|
124
|
115
|
95
|
146
|
JHL65-132
|
37
|
179
|
169
|
156
|
141
|
132
|
121
|
99
|
147
|
JHL65-139
|
37
|
186
|
176
|
163
|
148
|
139
|
128
|
106
|
148
|
JHL65-146
|
45
|
193
|
183
|
170
|
155
|
146
|
135
|
112
|
149
|
JHL65-154
|
45
|
207
|
196
|
182
|
164
|
154
|
142
|
116
|
150
|
JHL65-161
|
45
|
215
|
203
|
189
|
171
|
161
|
149
|
123
|
|
型 号
|
功率
(kw)
|
流量
(m3/h)
|
60
|
70
|
80
|
85
|
90
|
100
|
110
|
口径
(mm)
|
151
|
JHL90-13
|
5.5
|
扬程
H
(m)
|
19
|
17
|
16
|
14
|
13
|
10
|
6
|
100x100
|
152
|
JHL90-19
|
7.5
|
24
|
22
|
21
|
20
|
19
|
16
|
12
|
153
|
JHL90-28
|
11
|
39
|
36
|
32
|
30
|
28
|
22
|
15
|
154
|
JHL90-40
|
15
|
50
|
47
|
44
|
41
|
40
|
36
|
30
|
155
|
JHL90-49
|
18.5
|
65
|
60
|
55
|
52
|
49
|
41
|
32
|
156
|
JHL90-62
|
22
|
77
|
72
|
67
|
64
|
62
|
55
|
48
|
157
|
JHL90-72
|
30
|
93
|
87
|
80
|
75
|
72
|
62
|
50
|
158
|
JHL90-84
|
30
|
105
|
100
|
92
|
86
|
84
|
76
|
66
|
159
|
JHL90-93
|
37
|
120
|
113
|
104
|
98
|
93
|
81
|
68
|
160
|
JHL90-106
|
37
|
131
|
124
|
115
|
110
|
106
|
94
|
83
|
161
|
JHL90-117
|
45
|
148
|
139
|
129
|
122
|
117
|
102
|
86
|
162
|
JHL90-130
|
45
|
160
|
150
|
141
|
134
|
130
|
117
|
103
|
注:亦可订做两台或者三、四台泵组系统供水。
|
